Our Products

Engineered elevator components — safety sets, OSGs, headers, cabins, COP/LOP and a complete spares catalogue.

Safety SetOSG Set (Overspeed Governor)MRL Safety SetAutodoor HeaderElevator CabinDivator PulleyCOP / LOP SetElevator Spare Parts
Safety Set
Product 01

Safety Set

Heavy sheet-metal DBG construction with a progressive clutch system and rubber-pad mounting. Manufactured in 2:2 roping configurations for 6, 8, 10 and 13-person cabins; the cantilever variant is purpose-built for 4-person hydraulic and home lifts and supports pit-less, L-type opening installations.

Specifications
Construction
Heavy sheet-metal DBG
Mechanism
Progressive clutch system
Roping
2:2 configuration
Capacities
4 / 6 / 8 / 10 / 13 person
Variants
Gearless / Bottom-Pulley / Cantilever
Mounting
Rubber-pad isolation
Request a QuoteTalk to an Engineer
OSG Set (Overspeed Governor)
Product 02

OSG Set (Overspeed Governor)

Built for traction and roped-hydraulic elevators, the OSG set monitors cabin speed and trips the safety gear when the rated speed is exceeded. Sturdy, corrosion-free construction designed for long, low-maintenance service life.

Specifications
Application
Traction & roped-hydraulic elevators
Function
Overspeed detection & trip
Construction
Sturdy, corrosion-free
Pairs with
Progressive safety gear
Request a QuoteTalk to an Engineer
MRL Safety Set
Product 03

MRL Safety Set

Slim-profile, heavy-duty sheet-metal safety set with a progressive clutch mechanism — sized for the tight tolerances of MRL shafts without compromising stopping performance.

Specifications
Drive type
Machine-Room-Less (MRL)
Material
Heavy-duty sheet metal
Mechanism
Progressive clutch
Profile
Compact shaft-mount
Request a QuoteTalk to an Engineer
Autodoor Header
Product 04

Autodoor Header

VVVF-controlled AC PMSM motor with encoder feedback driving a wide-belt door system — wire-rope-less, quiet and consistent. Available in 2-panel openings of 700–1000 mm and 4-panel openings up to 1400 mm, with a choice of vision-panel options and stainless-steel or MS collapsible variants.

Specifications
Drive
AC PMSM with encoder
2-Panel openings
700 / 800 / 900 / 1000 mm
4-Panel openings
700 – 1400 mm
Vision panels
Non / Small / Half / Full
Materials
Stainless steel / MS collapsible
Belt
Wide, wire-rope-less car design
Request a QuoteTalk to an Engineer
Elevator Cabin
Product 05

Elevator Cabin

Made-to-order passenger and goods cabins for residential and commercial spaces. Choose from square glass, stainless-steel round glass, five-side glass, powder-coated round glass, and a wide range of SS designer cabins finished in golden mirror, rose-gold, hairline, matte and honeycomb panels.

Specifications
Designs
Square / Round / Five-side Glass
Finishes
Hairline / Mirror / Matte / Honeycomb
Premium series
SS Golden / SS Rose Gold / Designer
Frame
Stainless steel & powder-coated MS
Applications
Residential & commercial
Request a QuoteTalk to an Engineer
Divator Pulley
Product 06

Divator Pulley

A full size range of diverter pulleys, precision machined from high-grade materials, finished with V-grooves to suit standard elevator rope diameters of 8 mm and 13 mm in 3-, 4- and 5-groove configurations.

Specifications
Diameter range
200 / 300 / 320 / 410 / 510 mm
Rope size
8 mm and 13 mm
Groove counts
3 / 4 / 5 V-grooves
Sizes (Ø × rope × grooves)
200×13×3, 300×8×4, 410×13×4, 510×8×5 …
Application
Mid-rise & high-rise elevators
Request a QuoteTalk to an Engineer
COP / LOP Set
Product 07

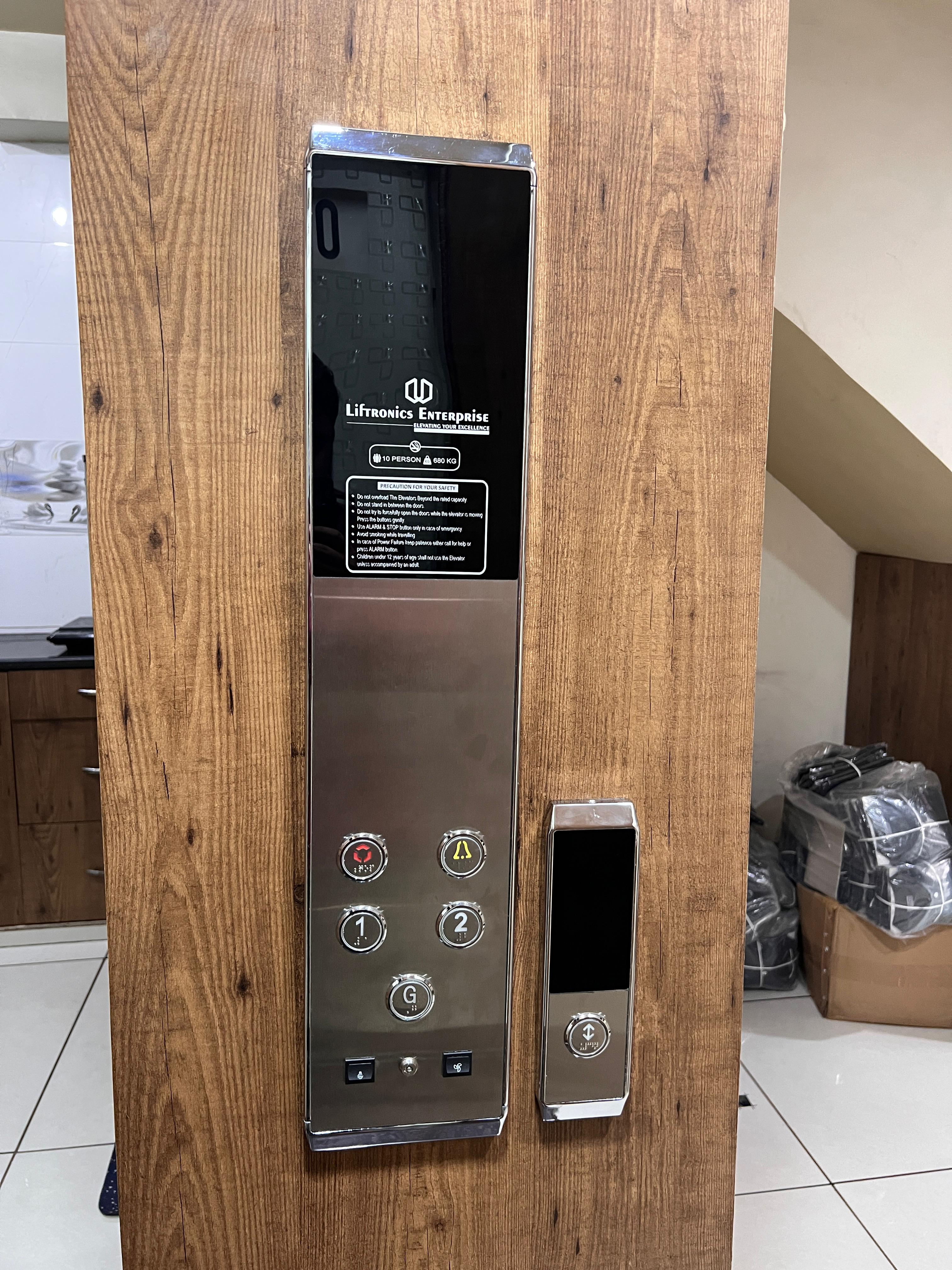

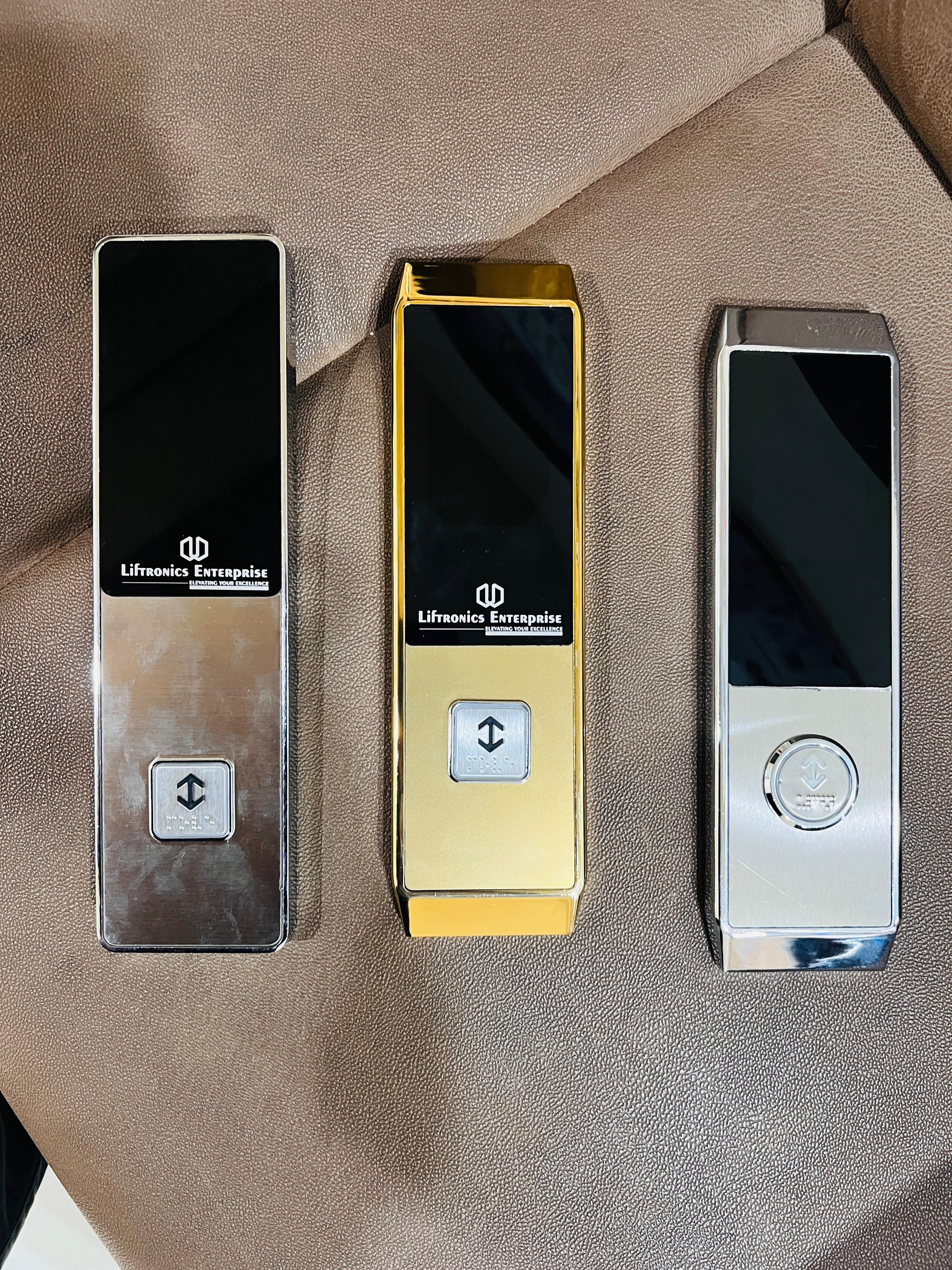

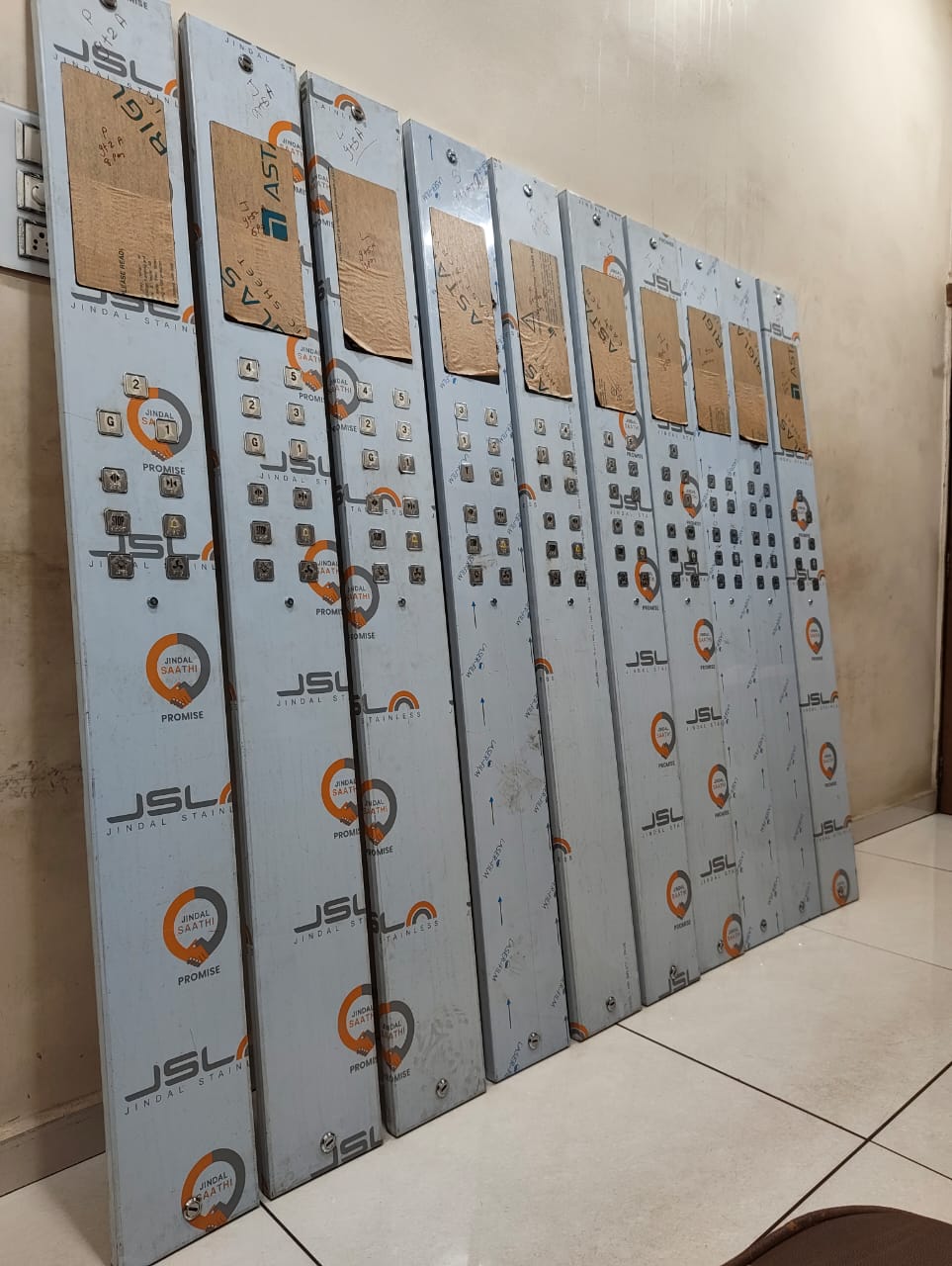

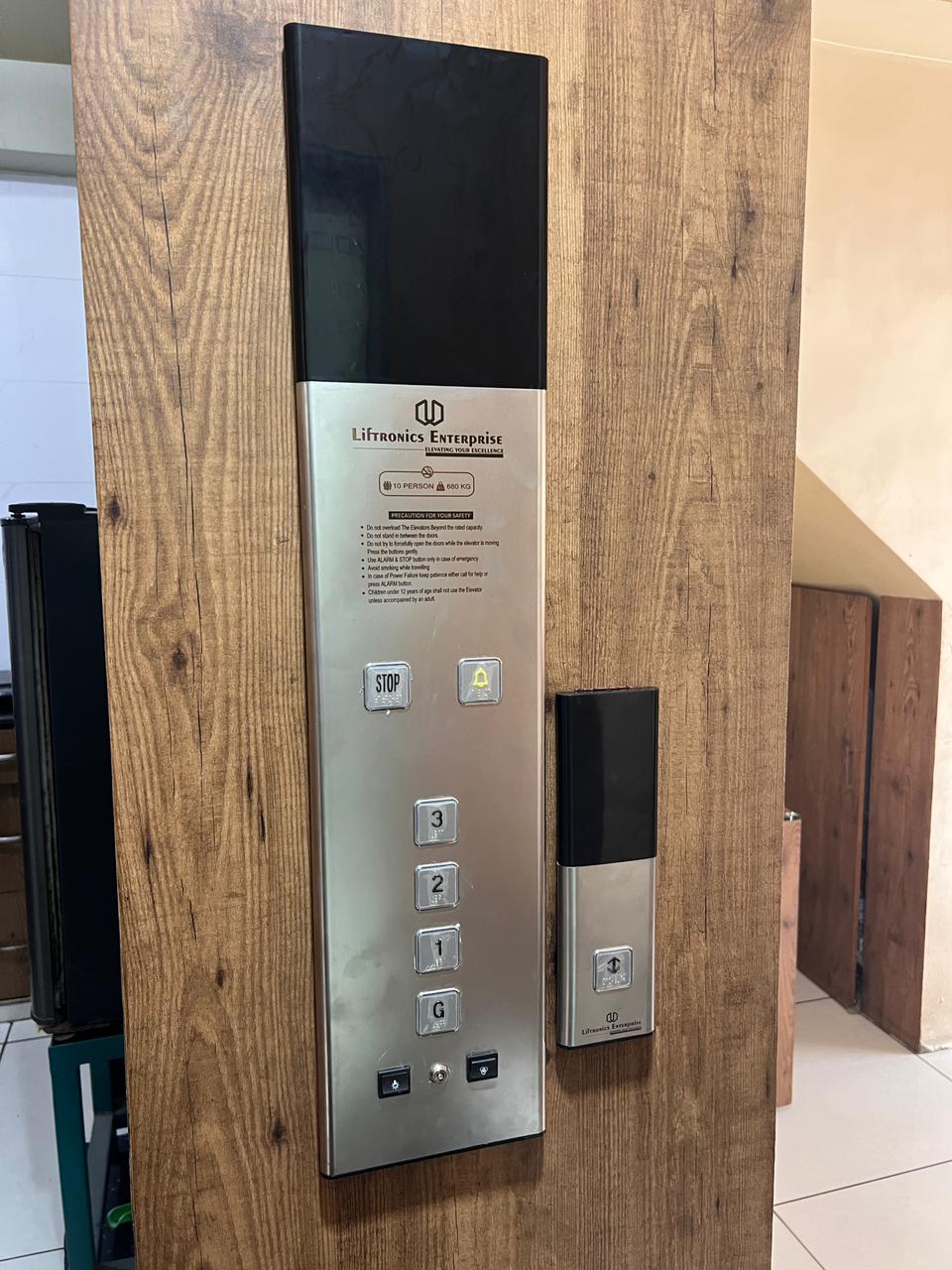

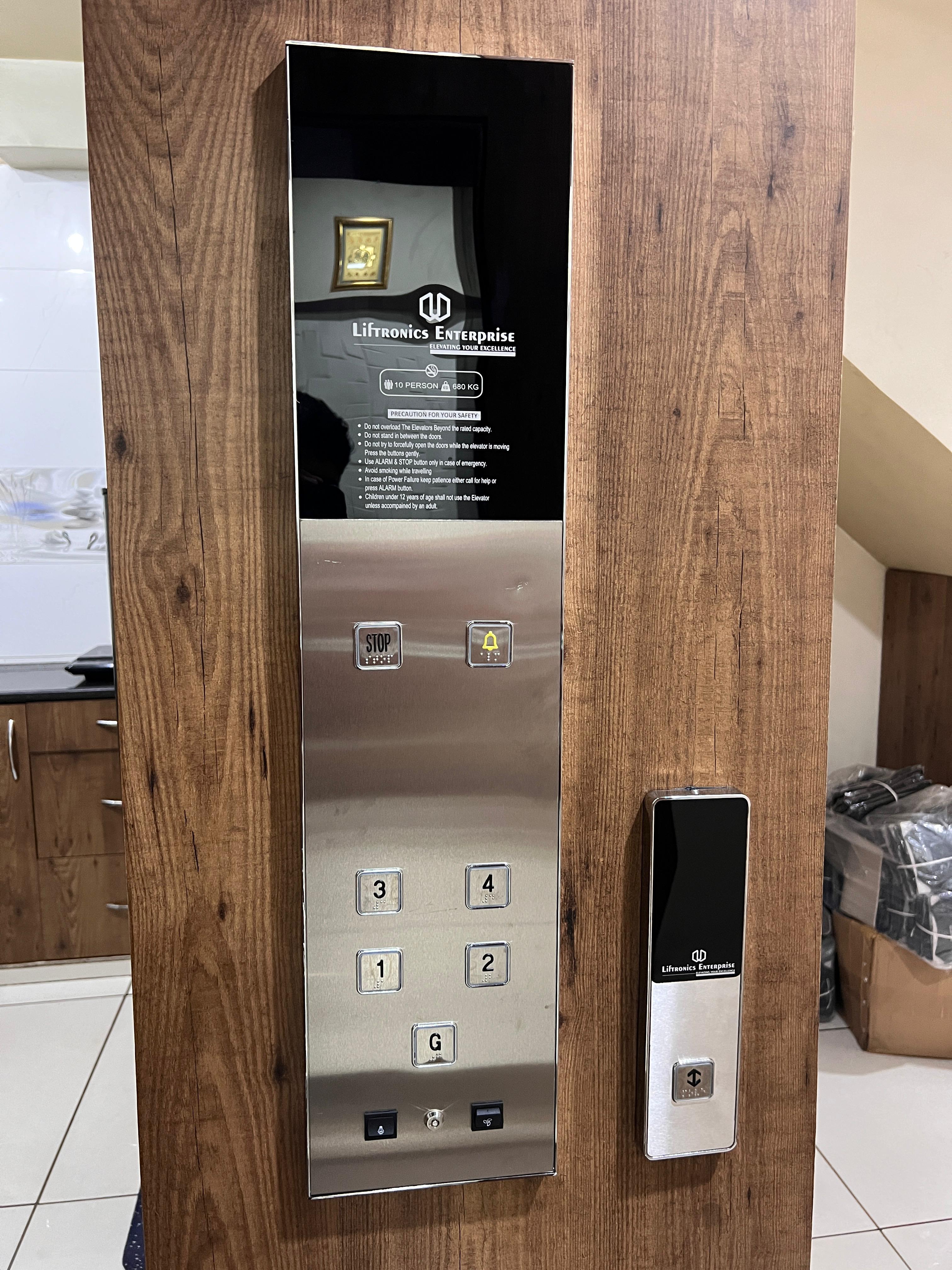

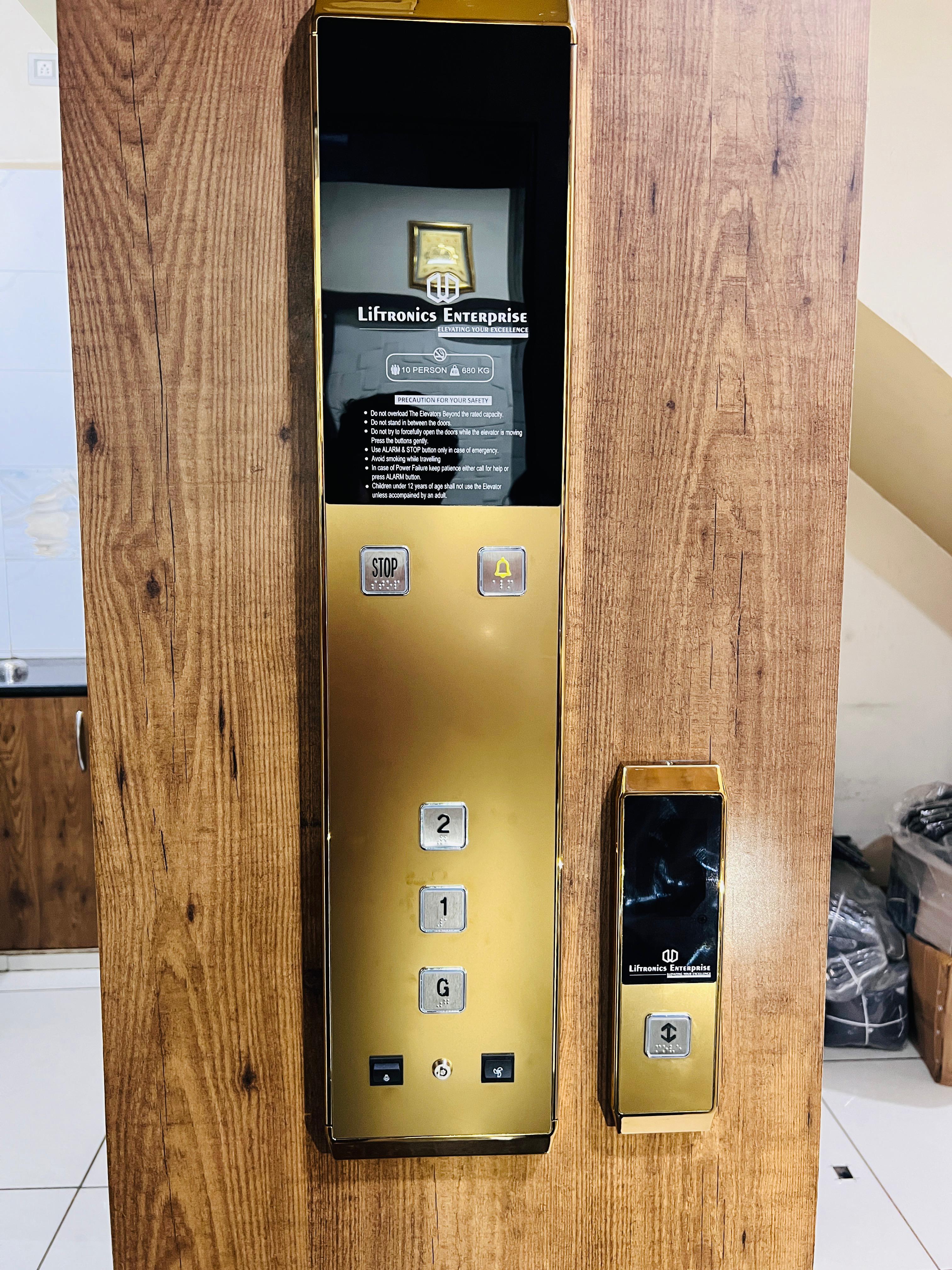

COP / LOP Set

Stainless-steel faceplates configurable with square push, round push, semi-touch or full-touch buttons. Pair with seven-segment, dot-matrix, TFT or LCD floor indicators — for residential, commercial and high-rise applications.

Specifications
Buttons
Square / Round / Semi-touch / Full-touch
Displays
7-Segment / Dot-Matrix / TFT / LCD
Faceplate
Stainless steel
Applications
Residential / Commercial / High-rise
Request a QuoteTalk to an Engineer
Elevator Spare Parts
Product 08

Elevator Spare Parts

Stocked range of common elevator spares — Otis Type I bolts, sheet-metal guide clips, wire-rope clips, header hanger bolts, REC bolts, J bolts, gun-type and LOLAC thimbles, fans, maintenance and junction boxes, fireman & alarm combos, and more — compatible with most elevator makes and conforming to industry safety norms.

Specifications
Bolts & Fasteners
Otis Type I, Header Hanger, REC, J Bolt
Clips
Sheet-metal Guide, Wire Rope, Guide Clip
Thimbles
Otis, LOLAC, Gun-type, Rope Clip
Panels & Boxes
Junction, Maintenance, Fireman & Alarm
Other
Lift fans, pans, operating panels
Compatibility
Most makes & models
Request a QuoteTalk to an Engineer
